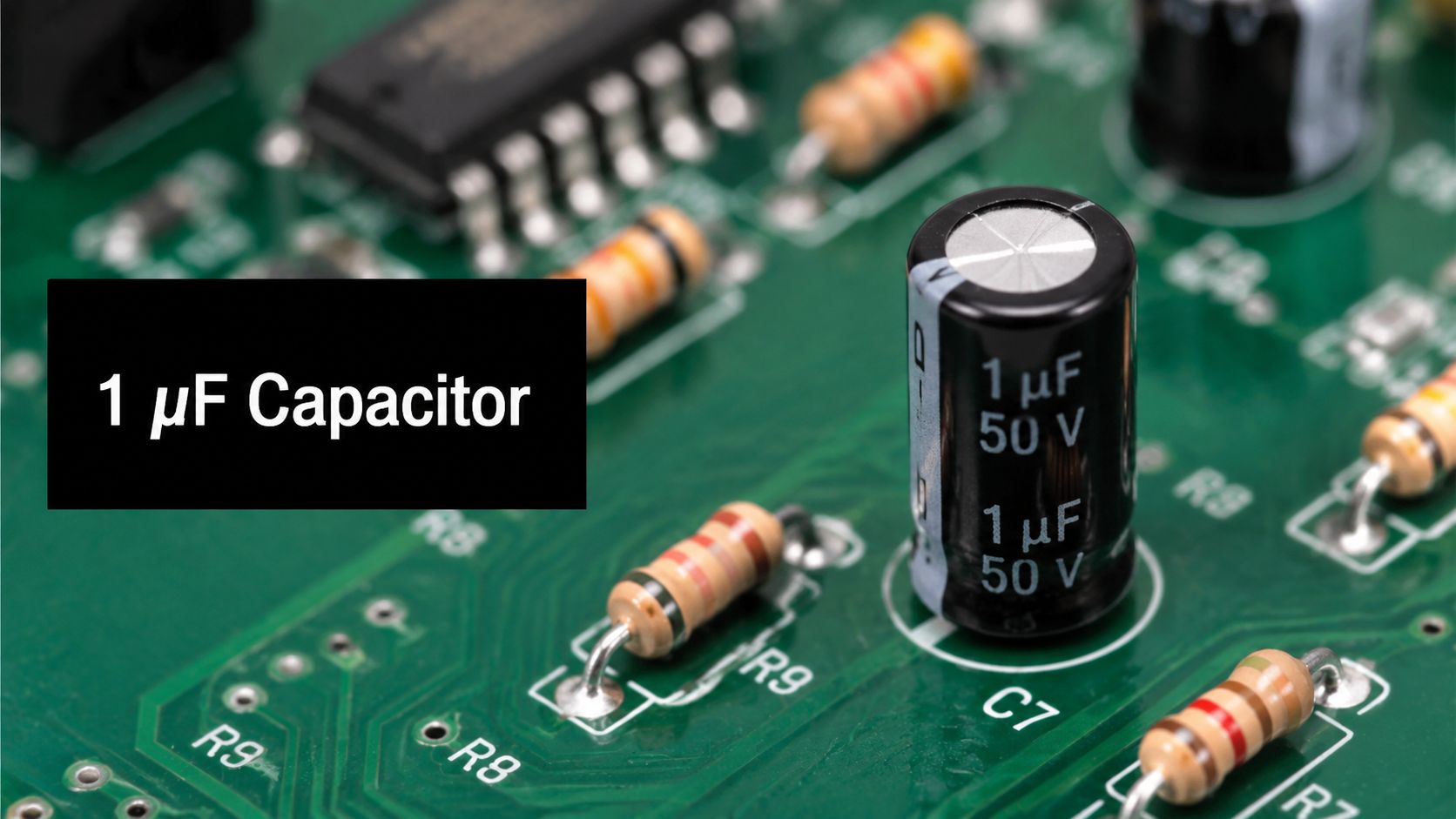

The Unsung Hero in Your Electronics
You've probably seen the problem before. A small amplifier hums when it shouldn't. A microcontroller resets for no obvious reason. A circuit works on the bench, then gets flaky once it's inside a project box. In a lot of those cases, a capacitor is doing the cleanup work.
A 1 microfarad capacitor often lands in a very useful middle ground. It's not tiny in effect, but it's also not a giant energy-storage part. That makes it a common choice in timing, coupling, and filtering jobs where a designer needs something practical and versatile rather than extreme.
Why this value shows up so often
Think of capacitance like a small buffer tank in a plumbing system. Too small, and it barely smooths anything out. Too large, and it may be unnecessary, bulky, or slow to respond in the way the circuit needs. A 1 µF capacitor often sits in that sweet spot where it can shape signals and steady voltage without taking over the design.
Historically, that usefulness only became clear after capacitor technology matured. The capacitor story goes back to the Leyden jar in the 1740s, one of the first practical devices for storing electric charge. Modern unit standards came much later, and in today's SI system, 1 µF equals 10^-6 farads, or one-millionth of a farad, as described in this history of capacitor development and the shift from Leyden jars to modern units.
Early capacitors were laboratory curiosities. Modern 1 µF parts became everyday tools because electronics needed repeatable, standardized components.
Small part, important job
When hobbyists first start out, they often pay attention to chips, transistors, and displays. Capacitors feel secondary. Then a project misbehaves, and suddenly that “little extra part” becomes the difference between stable and unreliable.
A 1 microfarad capacitor can act like:
- A shock absorber for a noisy power line
- A gatekeeper that lets signal changes through while blocking unwanted DC
- A timing helper that affects how quickly something charges or responds
- A filter element that helps a circuit ignore unwanted ripple or noise
That's why it keeps showing up in schematics. It's small, ordinary-looking, and often essential.
Decoding the Key Specifications of a 1µF Capacitor
When you buy a capacitor, 1 µF is only the first line of the story. The rest of the part's behavior depends on other specs that matter just as much in practice.
Capacitance is the headline, not the whole review
Capacitance tells you how much charge the capacitor can store relative to voltage. In simple terms, it's the size of the bucket. But a bucket description alone doesn't tell you how strong it is, what it's made from, or how it behaves under pressure.
With capacitors, the label value is often a nominal value. That means the part is intended to be 1 µF, but its actual value can vary depending on tolerance, temperature, and the capacitor's construction.
Voltage rating is the pressure limit
The easiest analogy here is water pressure. A tank might hold a certain amount, but it also needs walls strong enough for the pressure in the system. The voltage rating is that pressure limit.
If a circuit applies more voltage than the capacitor is rated for, the part can fail. When you substitute a part, matching the capacitance while ignoring the voltage rating is one of the most common mistakes beginners make.
Tolerance tells you how close to 1 µF it really is
Tolerance is the allowed variation around the printed value. A capacitor marked 1 µF might not measure exactly 1 µF and still be perfectly acceptable. That matters in timing circuits and some analog applications more than it does in general bypassing.
A broad tolerance can be fine in one circuit and a problem in another. That's why reading the full part marking or datasheet matters, especially when you're repairing gear rather than building casually.
Dielectric type changes real behavior
This is the part many guides skip, and it's the reason “same value” doesn't always mean “same result.”
A 1 µF multilayer ceramic capacitor, especially with class-2 dielectrics such as X5R or X7R, can lose a large fraction of its nominal capacitance under DC bias, as explained in this discussion of DC bias effects in MLCCs. In plain language, a capacitor labeled 1 µF may not act like 1 µF once the circuit's normal operating voltage is applied.
Practical rule: If a ceramic 1 µF capacitor is acting critical in a timing or analog circuit, don't assume the printed value is what the circuit actually sees.
By contrast, more stable dielectrics hold their value better, but they may be larger, cost more, or be harder to find in the exact package you want.
ESR and polarity matter more than beginners expect
Equivalent Series Resistance, or ESR, is the capacitor's internal resistance. Real capacitors aren't perfect. ESR affects how well they handle ripple, noise, and pulse currents.
A low-ESR part may work well in a fast, noisy supply. A different 1 µF capacitor with higher ESR may behave poorly in the same spot. That doesn't mean one is better in every case. It means each is suited to different jobs.
Then there's polarity:
- Ceramic and film capacitors are usually non-polarized, so orientation typically doesn't matter.
- Electrolytic and many tantalum capacitors are polarized, so they must be installed the correct way.
- Wrong polarity can damage the capacitor and the circuit around it.
A quick reality check
If you remember only one thing from this section, remember this: 1 µF is a starting point, not a complete specification.
Exploring Common Types of 1 Microfarad Capacitors
Walk into a parts drawer or browse an electronics store, and you'll find several very different components all labeled 1 µF. They share the same nominal capacitance, but they're built from different materials and behave like specialists with different strengths.
Ceramic, electrolytic, film, and tantalum
A ceramic capacitor is often the tiny one you'll see near integrated circuits. It's popular because it can be compact and convenient on dense circuit boards. For general bypassing and signal work, it's often the first thing people reach for. But as covered earlier, some ceramic types don't hold their full labeled capacitance under operating voltage.
An electrolytic capacitor is usually larger for the same value and is often polarized. You'll spot these as little cans or radial parts with clearly marked leads. They're common in power and audio circuits, but they aren't always the best choice where stability and low leakage matter most.
A film capacitor is usually bulkier than ceramic at the same capacitance, but many builders like film parts for applications where predictable behavior matters. Audio hobbyists, timing circuits, and restorers often prefer them when physical size isn't a problem.
A tantalum capacitor sits somewhere in between in many hobbyist discussions. It offers compact size and can be useful in certain designs, but polarity and application details matter, so it's not something to drop in casually just because the value matches.
What they tend to look like
Visual identification helps when you're troubleshooting or replacing parts:
- Ceramic parts are often small discs or rectangular surface-mount blocks.
- Electrolytics usually look like cylinders with polarity markings.
- Film capacitors often come in boxy plastic packages.
- Tantalums are commonly small molded parts, often with polarity marked clearly.
1 µF Capacitor Type Comparison
| Type | Typical Size | Polarity | Best For | Key Weakness |
|---|---|---|---|---|
| Ceramic | Small to very small | Usually non-polarized | Decoupling, compact boards, general-purpose filtering | Some types can lose effective capacitance under DC bias |
| Electrolytic | Larger | Usually polarized | Audio coupling, general smoothing, repairs where size isn't critical | Polarity matters, and performance can be less ideal at higher frequencies |
| Film | Often larger and boxy | Non-polarized | Timing, audio, stable analog use | Bigger physical size |
| Tantalum | Compact | Polarized | Space-limited designs needing a specific behavior | Must be chosen carefully for the application and polarity |
A 1 microfarad capacitor isn't one product category. It's a value that appears across several capacitor families.
Which type should a beginner choose
If you're building a simple project and the circuit notes don't specify much, the safest move is to follow the original design exactly. If the board calls for a ceramic, use a ceramic of suitable rating. If the original part is electrolytic and polarized, don't replace it with a random non-matching type just because the capacitance number lines up.
That habit saves a lot of frustration.
Practical Applications and Common Circuit Examples
The best way to understand a 1 microfarad capacitor is to watch the jobs it does in ordinary circuits. The same part value can act like a gatekeeper, a cushion, a timer, or a filter depending on where it sits.
Coupling in audio and signal paths
In a coupling role, the capacitor sits between two stages of a circuit and blocks DC while allowing the changing part of the signal to move through. That's why people sometimes describe it as a gatekeeper.
If one stage has a DC offset that would upset the next stage, the capacitor helps isolate them. A 1 µF value is often large enough to pass low-frequency signal content in many small-signal applications while still being manageable in size.
Decoupling and bypassing near chips
This is one of the most common real-world jobs. A chip switches current in tiny bursts. The power supply traces feeding it have resistance and inductance, so they can't respond perfectly instantly. A nearby capacitor acts like a local reserve and noise shunt.
The capacitor's frequency-dependent behavior matters here. Capacitive reactance follows Xc = 1/(2πfC), so a 1 µF capacitor has an ideal reactance of about 159 Ω at 1 kHz and about 1.59 Ω at 100 kHz, according to this capacitor impedance calculator explanation. That's why it can be useful for bypassing mid-to-high frequency noise, though it still isn't a replacement for larger bulk storage capacitors.
Timing in simple RC circuits
A capacitor charging through a resistor creates delay. That's the heart of many simple timing circuits. In hobby projects, a 1 µF capacitor often appears in LED blinkers, reset delay networks, or pulse shaping sections.
The water analogy works well here. The resistor limits how quickly the bucket fills, and the capacitor size determines how much “fill” is needed before the circuit reaches the next threshold. Change the capacitor, and the timing changes.
Filtering and smoothing
A 1 µF capacitor also helps tame rough edges in power and signal lines. It won't do the heavy bulk work of a much larger capacitor in a supply that has to support major load swings, but it can clean up smaller, faster disturbances effectively.
That's why designers often combine capacitor values instead of relying on one part to do everything.
- A smaller capacitor helps with very fast noise.
- A 1 µF capacitor covers a useful middle zone.
- A larger capacitor supports slower changes and energy demand.
One capacitor value rarely solves every noise problem in a circuit. Good designs spread the work across parts with different strengths.
A simple bench example
Say you build a small sensor board and power it from a cable that runs a bit longer than ideal. The readings jump around. You add a 1 µF capacitor near the sensor's supply pins, and the noise drops. Nothing magical happened. You just gave the circuit a nearby place to source and sink quick fluctuations.
That's the practical beauty of this value. It often fixes ordinary electronic problems without needing a large or expensive part.
How to Choose and Substitute a 1µF Capacitor
When a capacitor fails, many people search for “1 µF replacement” and stop there. That's not enough. A good substitution matches the circuit's needs, not just the printed capacitance.
Start with the original job
Ask what the capacitor is doing.
If it's in a timing circuit, value stability may matter a lot. If it's in a power bypass position, ESR, package style, and dielectric behavior may matter more. If it's in an audio path, leakage, polarity, and physical size may shape the result.
This is why 1 µF is not a universal interchange size. A run-capacitor testing reference notes that measured microfarads must be judged against the stamped tolerance band, typically about ±5% to ±10%, and readings outside that range can indicate failure, as described in this guide to checking capacitors against their marked tolerance.
What should match and what can exceed
A practical substitution checklist looks like this:
- Capacitance value should match the original unless the circuit design clearly allows a change.
- Voltage rating can be equal or higher, but not lower.
- Polarity must match if the original part is polarized.
- Tolerance should be considered if the circuit depends on timing or precise filtering.
- Dielectric and ESR matter if the capacitor works in high-frequency, analog, or supply-sensitive roles.
Good substitutions and bad substitutions
Replacing a 1 µF capacitor with another 1 µF part of a higher voltage rating is often reasonable, if the part type and physical fit also make sense.
Replacing a stable capacitor in a timing path with a physically tiny ceramic that loses effective capacitance in use can create odd behavior. The circuit may still power on, but the timing or response may drift enough to cause trouble.
Likewise, replacing a non-polarized part with a polarized one, or vice versa, isn't something to do casually. The circuit position decides what's acceptable.
A sensible repair mindset
If you're repairing equipment and the original part type is clear, the safest habit is simple:
- Match the 1 µF value.
- Meet or exceed the voltage rating.
- Keep the same capacitor family unless you understand the tradeoff.
- Respect polarity and physical layout.
- Treat ESR and stability as part of the complete specification.
The label tells you the value. The circuit tells you the rest.
That's the difference between a repair that lasts and one that only seems fixed for a few minutes on the bench.
Testing and Troubleshooting a Suspect Capacitor
A bad capacitor doesn't always announce itself dramatically. Sometimes the board acts strange. It resets, hums, distorts, or refuses to start reliably. When that happens, a few basic checks can save a lot of guessing.
Test it safely first
Before measuring any capacitor, disconnect power and make sure the part is discharged. Even a small capacitor should be treated carefully. Good bench habits matter more than the part's size.
If your digital multimeter has a capacitance mode, remove at least one lead from the circuit when possible. In-circuit readings can be misleading because other components may affect the measurement.
What to look for on the meter
Compare the measured capacitance to the part's marked value and tolerance, if known. A reading that falls outside the capacitor's allowed band is a warning sign. That doesn't catch every possible fault, but it's a strong first filter.
If the capacitor measures wildly off, won't settle, or the meter struggles to read it consistently, replacement is often the practical next step for hobby work.
Visual clues still matter
You don't always need a fancy setup to spot trouble. Look closely for:
- Bulging tops on electrolytic capacitors
- Leaking residue around the body or leads
- Burn marks or discoloration on the part or nearby board area
- Cracks or physical damage on ceramic packages
- Loose or corroded leads that break connection intermittently
These signs don't prove every failure mode, but they give you a very useful starting point.
A quick visual walkthrough can help if you're new to this kind of bench work:
When the capacitor tests fine
A capacitor can appear acceptable and still not solve the problem you're chasing. That's normal. Circuits fail for many reasons.
If your 1 microfarad capacitor measures within range and shows no physical damage, keep troubleshooting the surrounding parts. Check solder joints, connectors, and any resistor or semiconductor the capacitor interacts with. Good troubleshooting is a process of narrowing down suspects, not forcing one part to be guilty.
Frequently Asked Questions About 1 Microfarad Capacitors
Is a 1 µF capacitor good for storing useful energy
Usually, no. Many beginners expect it to behave like a little battery, but a 1 µF capacitor would need to be charged to about 1,414 volts to store 1 joule of energy, as shown in this worked explanation of capacitor energy. That's why this value is mostly used for signal control, filtering, timing, and similar jobs.
Can I read small capacitor codes easily
Sometimes, but not always. Larger through-hole parts are often marked clearly. Very small surface-mount parts may use short codes or no visible marking at all, so the schematic, parts list, or board reference often matters more than the body print.
Are 1 µF capacitors dangerous
Any capacitor should be handled with care because stored charge can surprise you. In everyday low-voltage hobby circuits, a 1 µF capacitor usually isn't the dramatic hazard people imagine, but safe discharge and careful measurement are still good habits.
