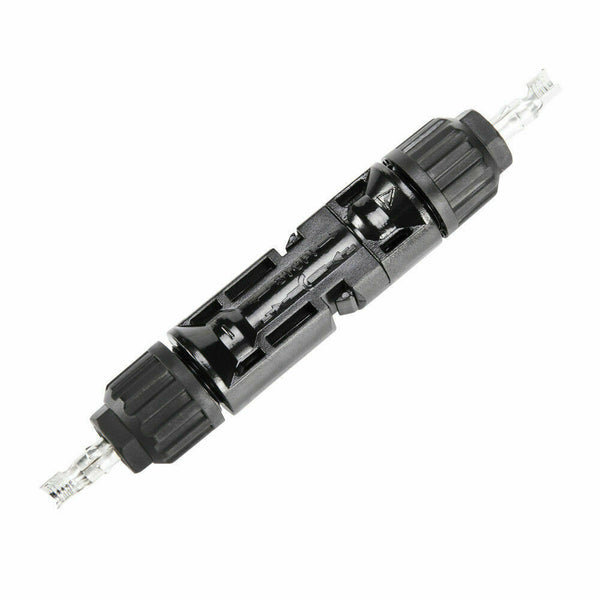

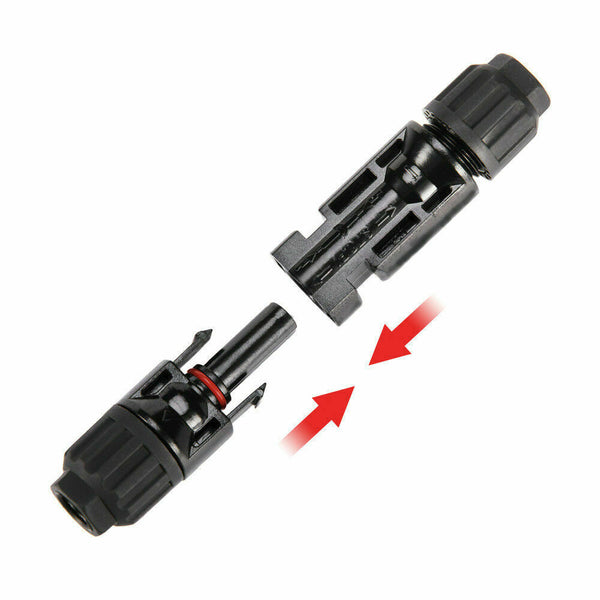

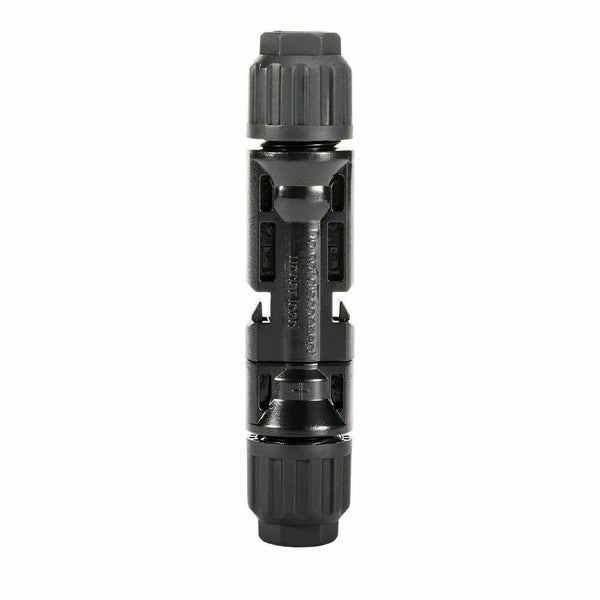

IP67 Solar Panel For 30A Line Plug Socket Connectors Male & Female

Description

Description
● Brand New, Top Quality Product
● 5in1 Connectors
● Rate voltage :1000V
Rated current :30A(4mm2,6mm2)
● Test voltage :6KV(50Hz)
● Protect degree: IP67
● Insulation material :PPO
● Contact material Copper :sliver plated
● Operating temperature :-40°C~+90°C
● Safe class :2
● Flame class: UL94-V0
● Contact resistance of plug connectors: ≤5mΩ
● Insertion force :≤50N
● Withdraw force: ≥50N
● Suitable cable :2.5mm2/4mm2/6mm2(AWG14/12/10)
● Locking system Snap in
Drawing


Package

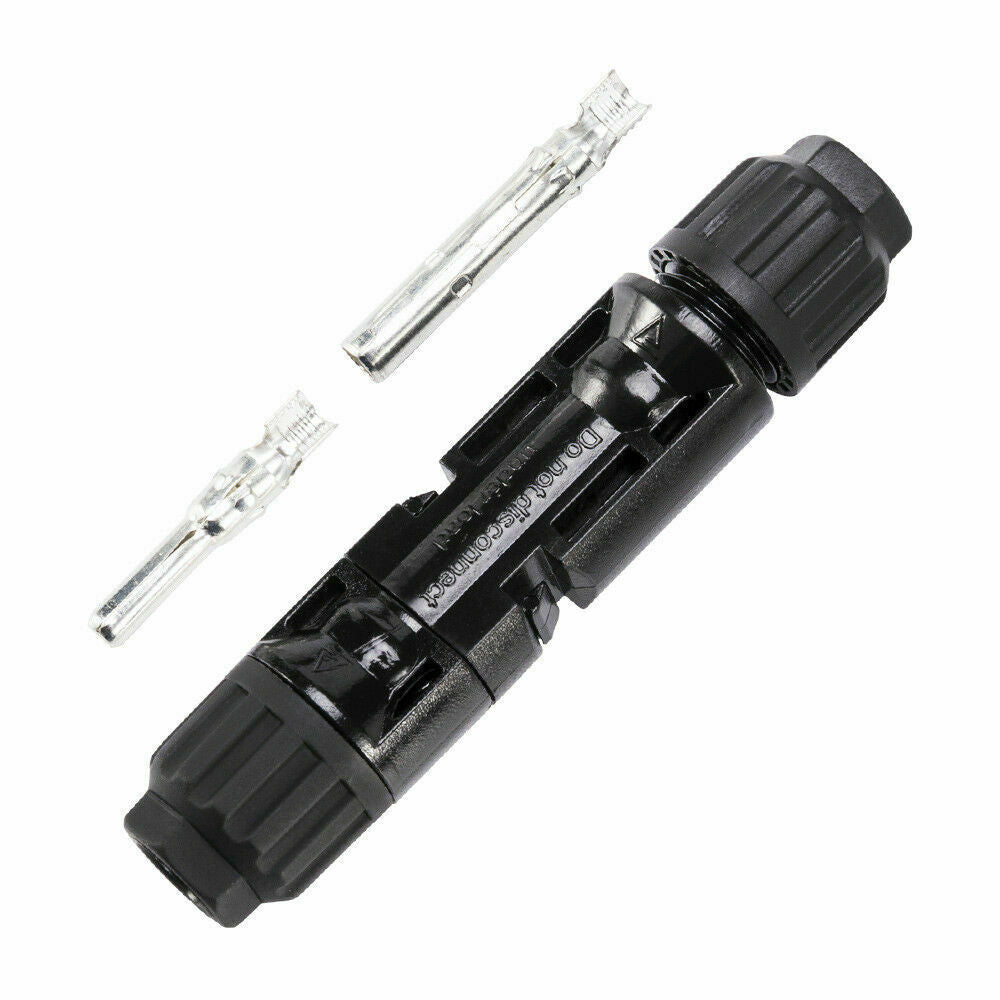

● - Male solar panel cable connector
- Female solar panel cable connector
