Operating voltage: DC 5V-24V Maximum load current: 12A Maximum remote distance 15M at open area Working temperature: -20-60â Function: adjusting light, blinking flashing 1.Turn On/standby 2.lighting mode 3/8/9. Dimmer adjust shortcuts 4/6 Dynamic mode adjust 5/7 speed adjust 10/11 Brightness adjust

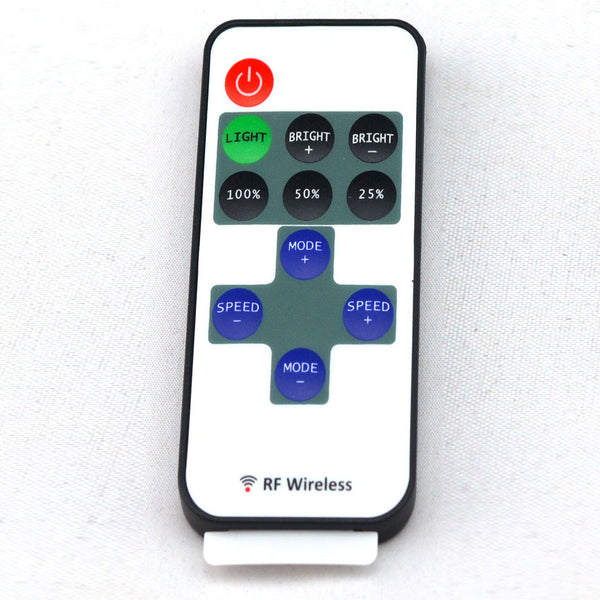

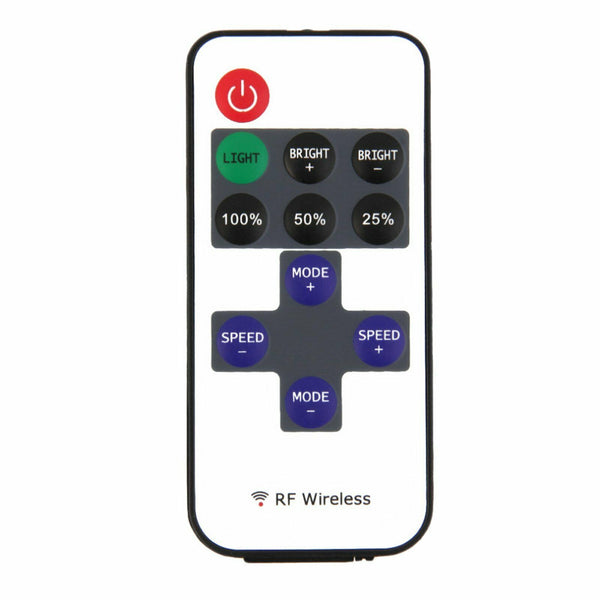

Instructions for RF Wireless Remote -Turn On/ Standby Press this key to turn on unit or switch to standby mode. Unit will turn on and restore to previous status at powering on moment. -Lighting mode Switch to lighting mode from dynamic mode. 3/8/9. Dimmer Adjust Shortcuts Switch to 100%, 50%, or 25% brightness lighting mode. 4/6. Dynamic Mode Adjust Switch to dynamic mode from lighting mode, or switch between different dynamic modes. 5/7. Speed Adjust Adjust playing speed of dynamic modes. Press SPEED+ to increase seed and press SPEED- to decrease. 10/11. Brightness Adjust (Dimmer) Adjust lighting mode brightness. Press BRIGHT+ to increase brightness and press BRIGHT- to decrease Installing for RF Wireless Remote: 1)Power Supply -This unit accepts DC 5V to 24V power supply. -The red cable should be connected to positive and black cable to negative. -Please select proper power supply according to the LED application. 2)LED Output -The red cable should be connected to LED positive and black cable to negative. -The peak output current is 12A, please reduce load if main unit is overheating. -CAUTION: Do not short circuit the LED output, this may lead to permanent damage! 3)Remote Control -Please pull out the insulate part before using. The RF wireless remote signal can pass through barrier, so it\'s not necessary to aim at the main unit when operate. For proper receiving remote signal, do not install the main unit in closed metal parts.

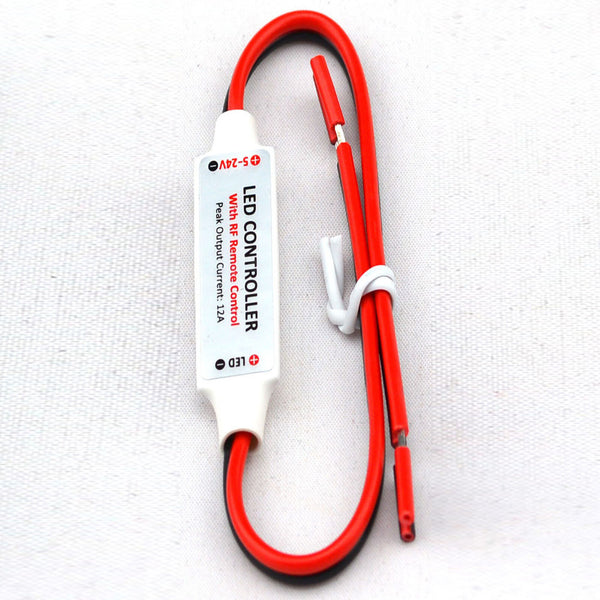

Notes: 1. Power supply This unit accepts DC 5V-24V power supply. The red cable should be connected to positive and black cable to negative. Please select proper power supply according to the LED application. 2. LED output The red cable should be connected to LED positive and black cable to negative. The peak output current is 12A, please reduce load if main unit is overheating. CAUTION! Do not short circuit the LED output, this may lead to permanent damage! 3. Remote control Please pull out the insulate part before using. The RF wireless remote signal can pass through barrier, so it is not necessary to aim at the main unit when operate. For proper receiving remote signal, do not install the main unit in closed metal marts. The remote battery is 3V CR2025 Type, please only replace with same type battery.
