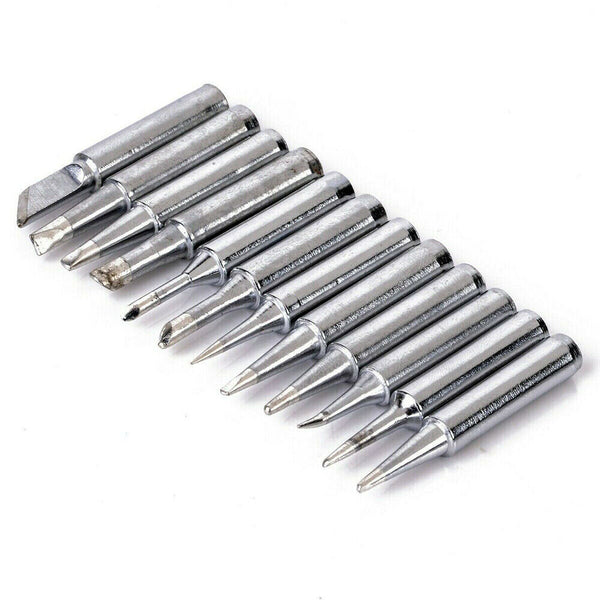

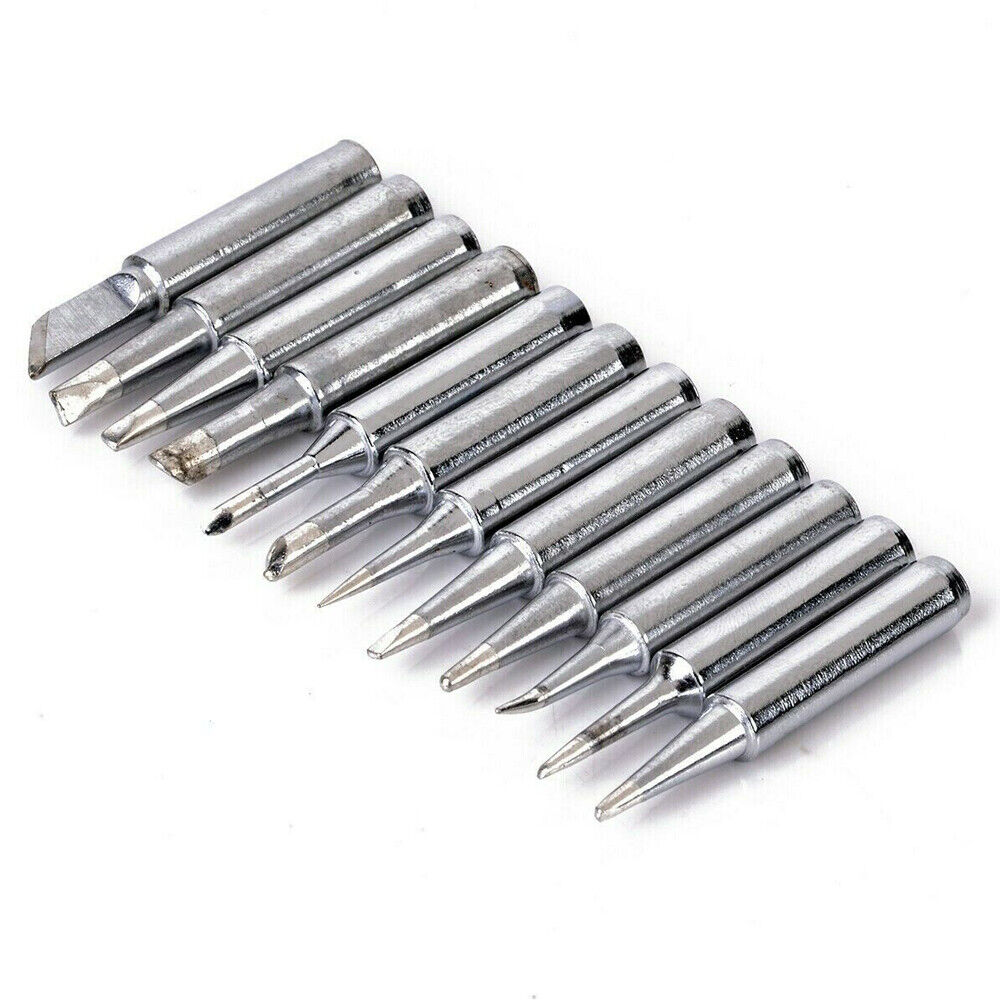

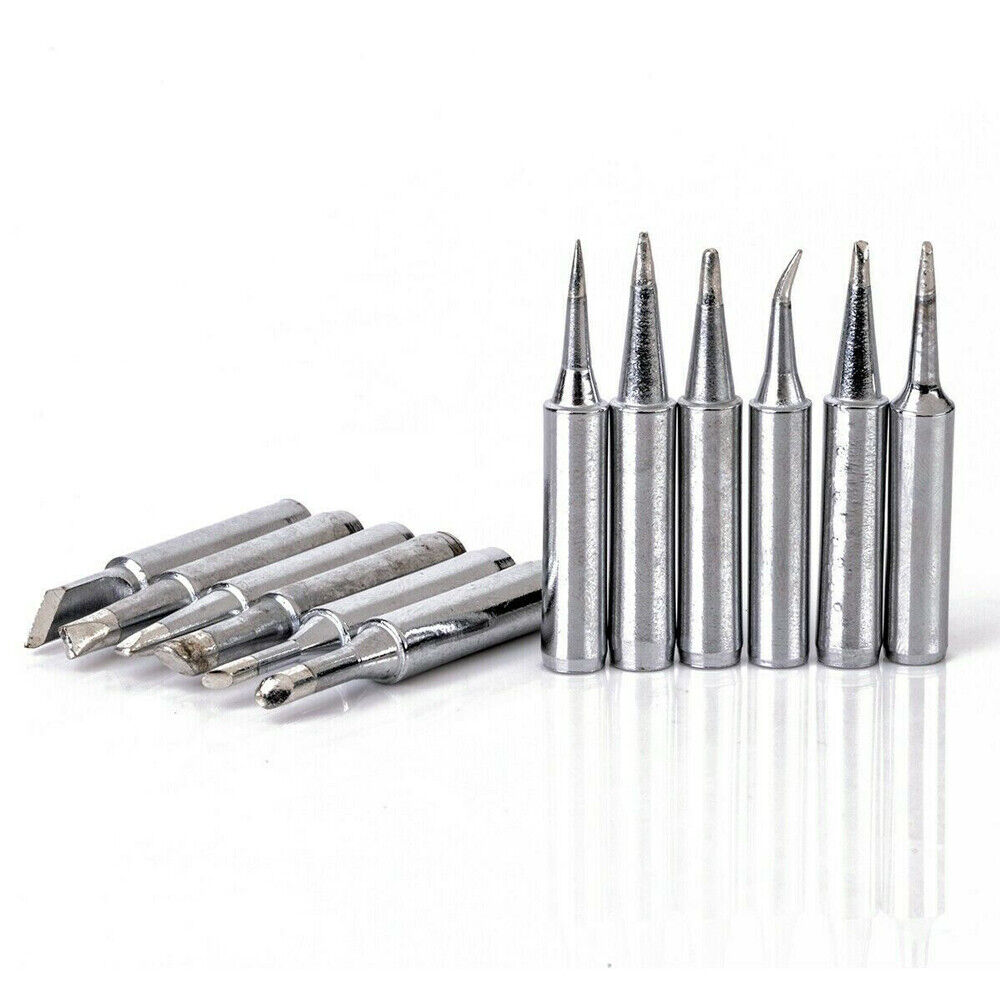

This is a 12 pack of 900M-T series soldering iron tips – twelve different shapes in one set, each approximately 4.2cm long and plated with lead-free solder, designed to fit C1151 and C1152 handles and Hakko 907, 926, 928, 933, 937 and 941 soldering stations. You get one of each shape: chisel tips in four widths, bevel tips in four widths, a conical tip, a fine needle tip, a knife tip and a fine chisel.
Soldering iron tips are consumables, not permanent fittings. Every tip oxidises, pits and eventually stops taking solder no matter how carefully it is treated — and a worn tip is the single most common reason a joint refuses to flow properly. Rather than replacing one tip at a time in the same shape you have always used, this set gives you the full range at once, so the next job that needs a wide chisel for a ground plane or a needle point for a 0603 pad is already covered.
Why Buy a Soldering Iron Tip Set Rather Than Single Tips
The right shape for each joint – a 3.2mm chisel moves heat into a thick ground pad in seconds, while the same job with a needle tip can take a minute and still not flow.
Twelve shapes, one purchase – chisel, bevel, conical, fine needle and knife profiles are all covered, so you are not ordering a new tip mid-project.
Lead-free plated – the tips are plated with lead-free solder and work with lead-free and leaded solder alike.
Standard 900M-T fitment – this is the most widely used tip format on the market, so it fits the Hakko 907-style handle and the many stations built around it.
Spares on the shelf – when a tip finally gives up, the replacement is already in the drawer instead of a week away.
What Do the 900M-T Tip Numbers Mean?

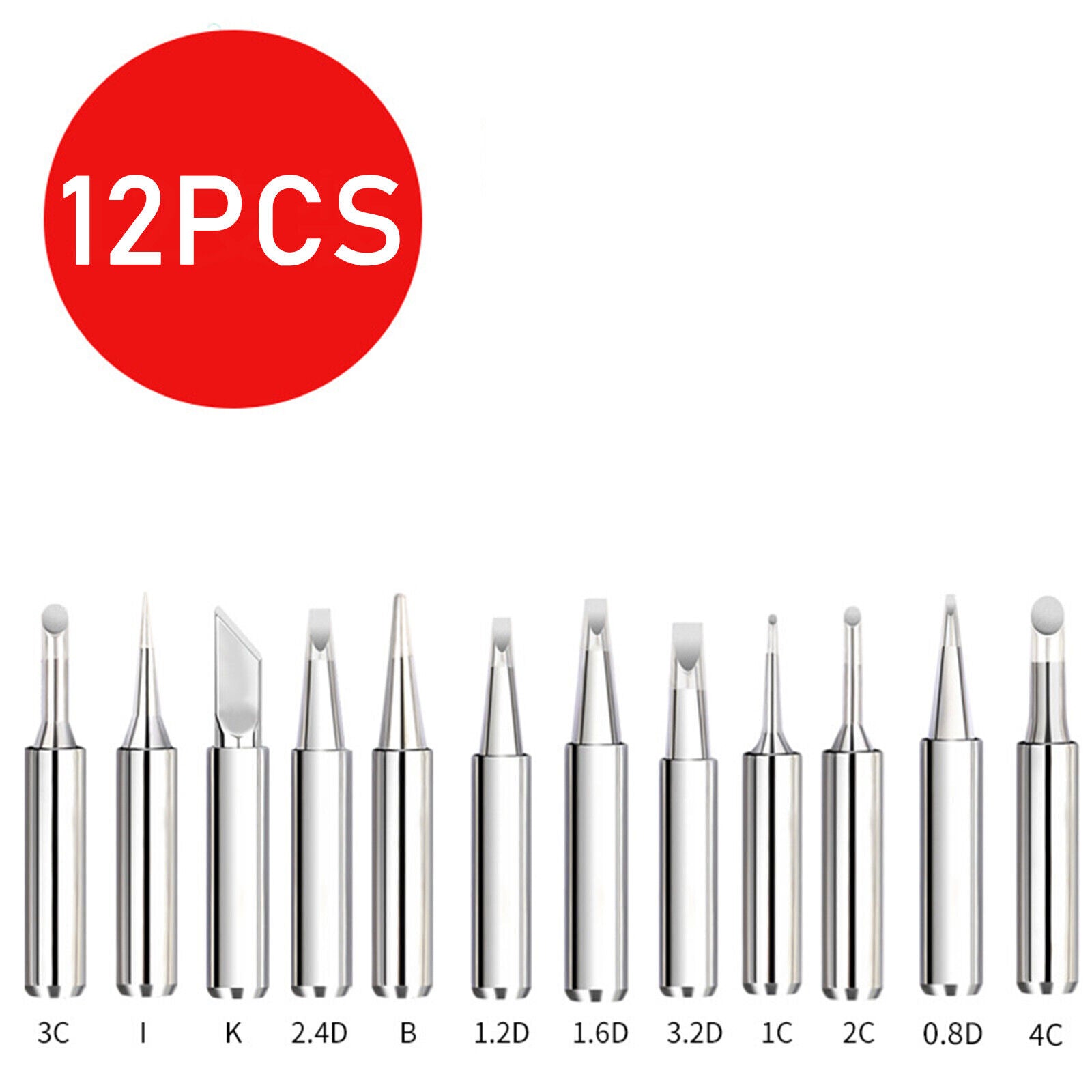

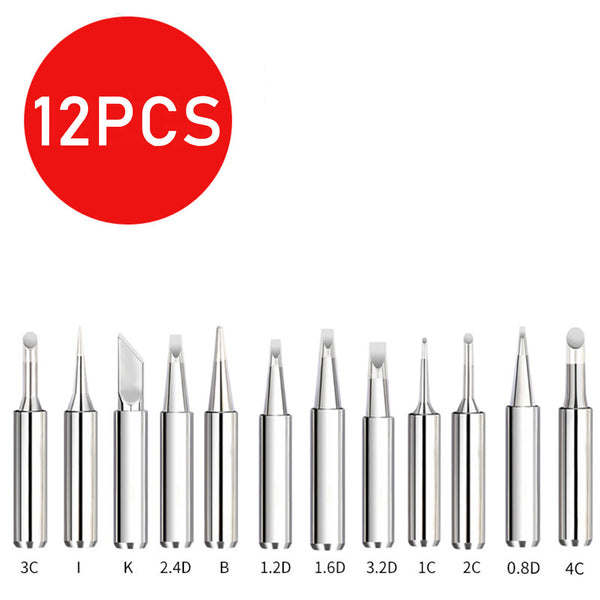

The suffix after 900M-T tells you the shape. D means a chisel or screwdriver tip, and the number in front of it is the width of the flat face in millimetres — so 900M-T-1.6D is a 1.6mm chisel. C means a bevel or hoof tip, cut at an angle to give a broad contact area, with the number again giving the size in millimetres. B is a conical tip, I is a fine needle-point conical, and K is a knife tip. Once you know the code you can order any replacement in the series with confidence.
Will These Tips Fit My Soldering Iron?
These are 900M-T series tips. They fit the C1151 and C1152 handles and Hakko 907, 926, 928, 933, 937 and 941 soldering stations, plus the very large number of generic and clone irons built around the same 900M-T format. The quickest way to check your own iron is to pull the existing tip and compare it: 900M-T tips have a long hollow shank about 4.2cm in length that slides over the heating element and is held by a nut and sleeve. If your current tip looks like that and measures the same, this set will fit.
Which Tip Should You Reach For?
Use the widest tip the joint will accept. Heat transfer depends on how much metal is touching the work, so a wide chisel on a big pad is faster and gentler than a fine point struggling to deliver the same energy through a tiny contact area. Keep the fine needle and conical tips for genuinely small work — fine-pitch surface-mount pads, single-strand wires and repairs in cramped spaces. The bevel and knife tips come into their own for drag soldering multi-pin packages and for cleaning up bridges.
Making Your Tips Last
Tip life comes down to tinning. Keep a coat of solder on the working face whenever the iron is hot, wipe on a damp sponge or brass wool immediately before use rather than leaving the tip bare, and re-tin before you park the iron or switch it off. Avoid running the station hotter than the job needs, since excess heat accelerates oxidation, and never file or sand a plated tip — once the plating is through, the tip stops taking solder for good.
Close work is far easier when you can see it. Our LED headband magnifier keeps both hands free for the iron and the solder while lighting and magnifying the joint.
Frequently Asked Questions
Are these lead free soldering tips? The tips are plated with lead-free solder. They can be used with both lead-free and leaded solder wire.
Do these fit Hakko 900M irons? Yes. They are 900M-T series tips and fit Hakko 907, 926, 928, 933, 937 and 941 stations along with C1151 and C1152 handles.
How many tips are in the pack? Twelve — one of each of the shapes listed in the table above. There are no duplicates.
What is a chisel soldering iron tip used for? A chisel tip has a flat face that puts a lot of metal in contact with the joint, so it transfers heat quickly. It is the best all-round choice for through-hole components, wires and connectors.
Why won't my tip take solder any more? Almost always oxidation. Re-tin it while hot and clean it with brass wool. If the plating has worn through and bare metal is showing, the tip has reached the end of its life and needs replacing.
How long is each tip? Approximately 4.2cm, which is the standard 900M-T length.
Fast Australian Shipping
We dispatch from Australia and deliver Australia-wide, including Sydney, Melbourne, Brisbane, Perth, Adelaide, Hobart, Canberra and Darwin, plus regional and remote addresses. Order early in the day and your tips are usually on the way the same or next business day.
These are compatible replacement soldering iron tips. Lets Party is not affiliated with, licensed by, sponsored by or endorsed by Hakko Corporation. Brand and model numbers are quoted only to help you identify which soldering stations and handles these tips fit. Soldering irons reach high temperatures – allow the iron to cool fully before changing a tip.
