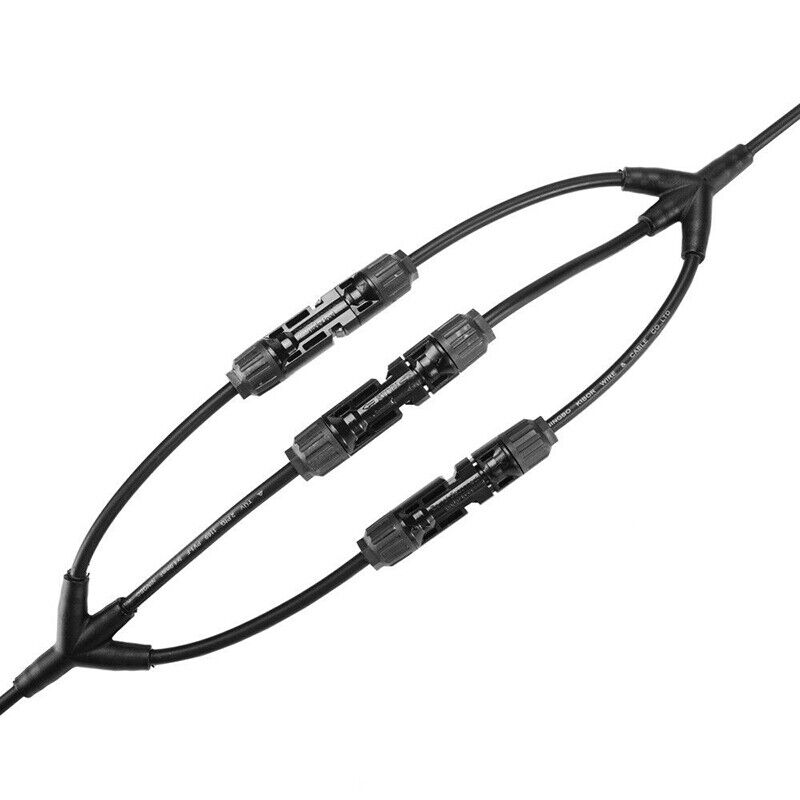

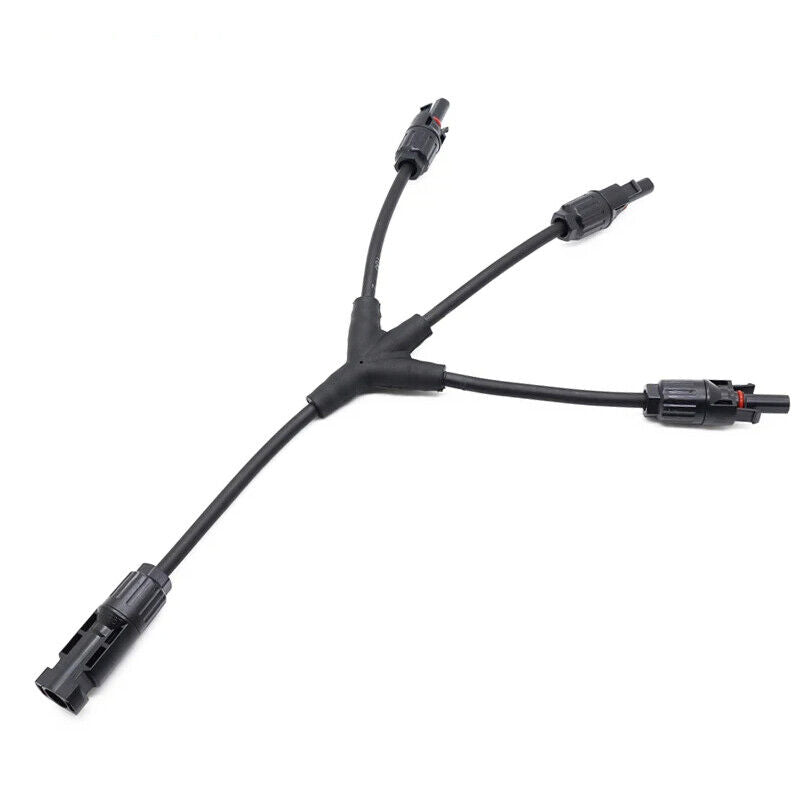

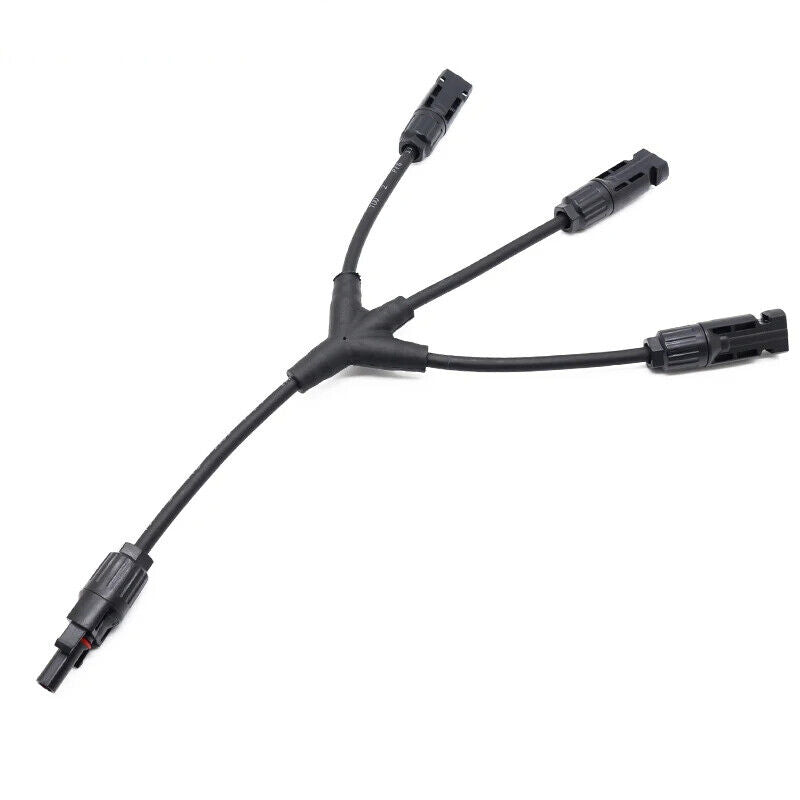

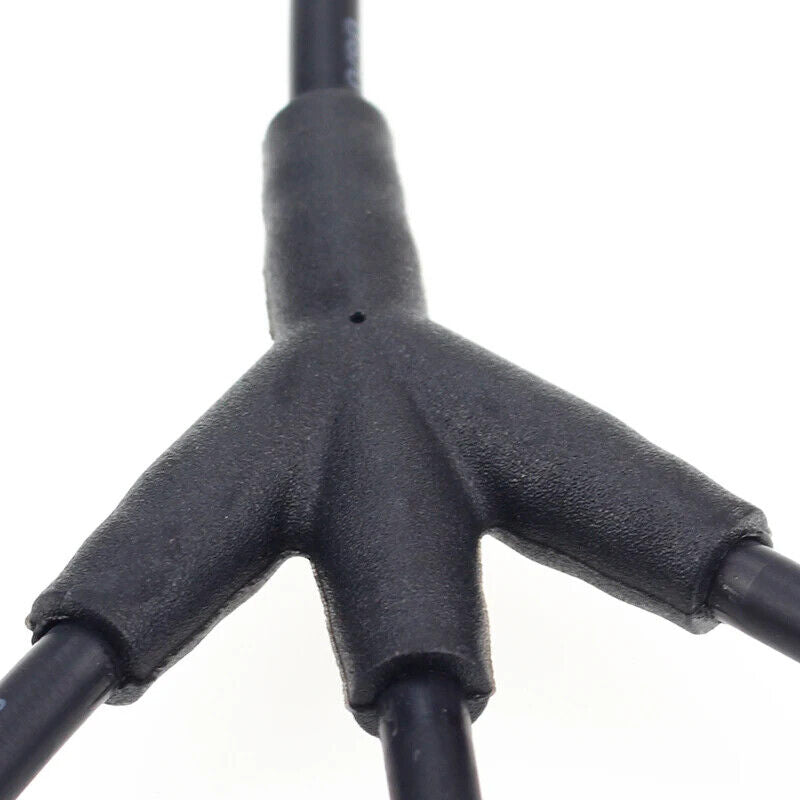

3Y Branch Connector Adapter Cables 3Y Solar Cable Connectors IP67 PV AU STOCK

$24.03 $21.95 21.95

Product Code: 699993851998

In stock

Qty

Contact Us

Description

FEATURES:
Protection Class:2
Protection Degree:IP2X,unmated;IP67,mated

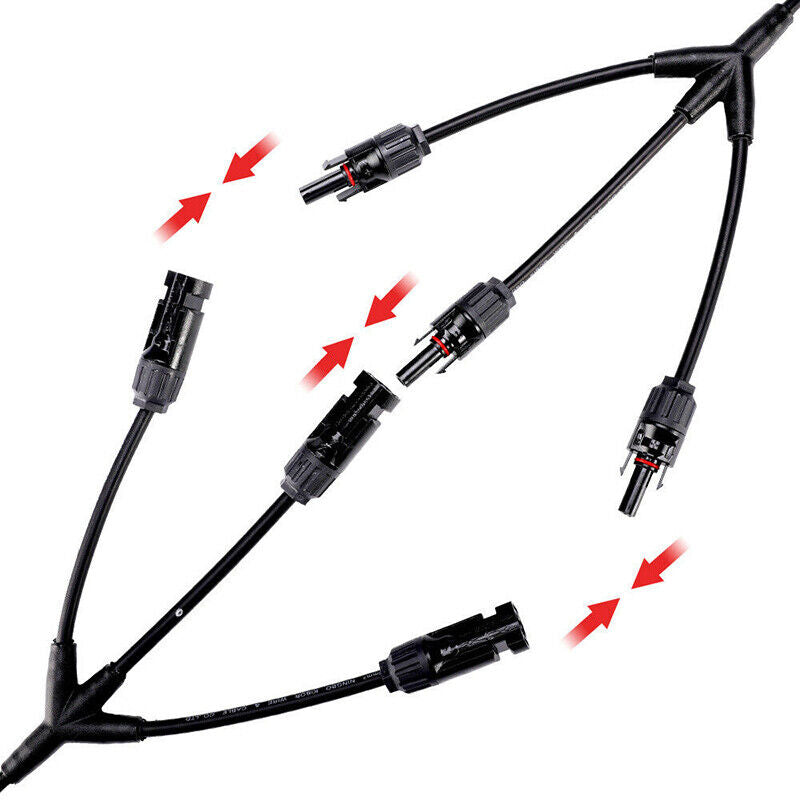

Quick & simple assembly processing and simple removal of plugs without the aid of any extra instrument
Compatible with PV cables with different insulation diameters
Resistance of extra high & low temperature and fireproof
Load capability with big current and high voltage
Locking system Snap in
SPECIFICATIONS
Rate Voltage:1000V
Rated Current:40A
Waterproof Rate:IP 67
Test Voltage:6000V(50Hz)
Insulation Material:PPO
Contact Material Copper:Sliver plated
Safe Class :2
Flame Class:UL94-V0
Contact Resistant Of Plugg Connectors:≤5mΩ
Insertion Force:≤50N

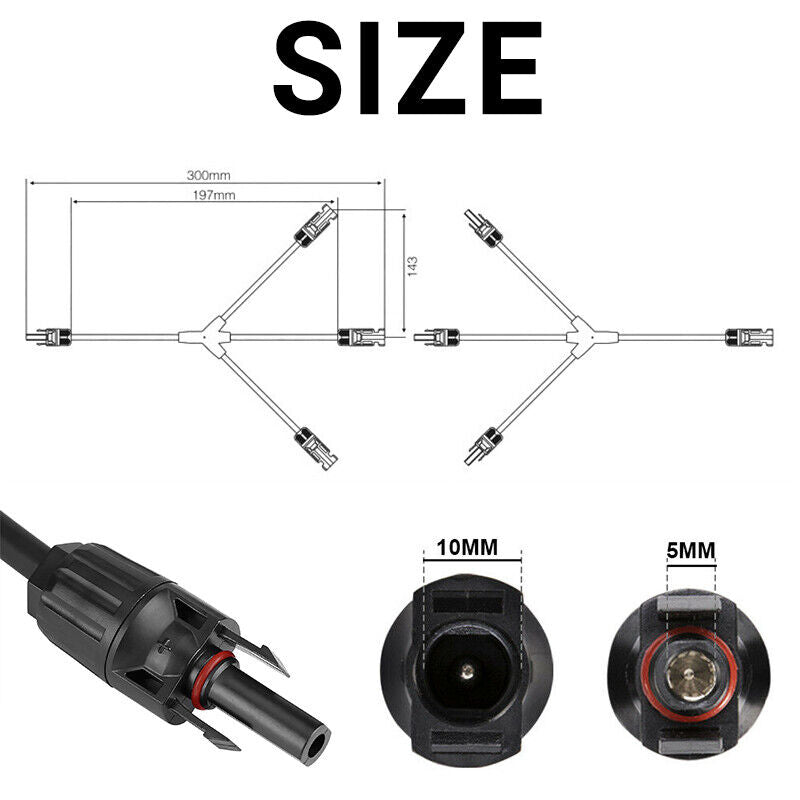

Diameter Of Pin Or Socket:4mm
Locking System:Snap in
Suitable Cable :2.5mm2/4mm2/6mm2(AWG14/12/10)
What's In Box

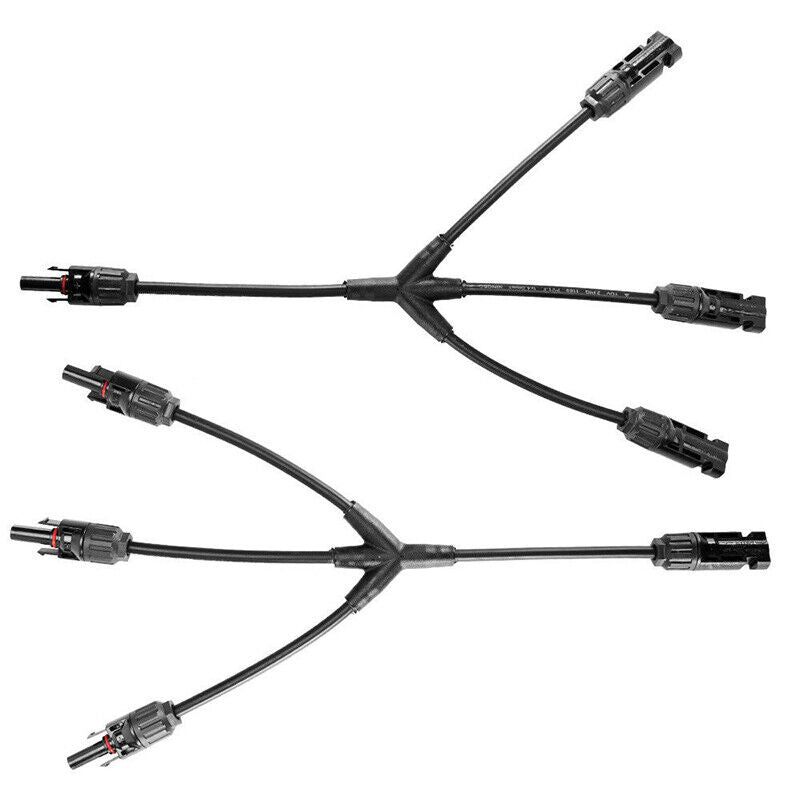

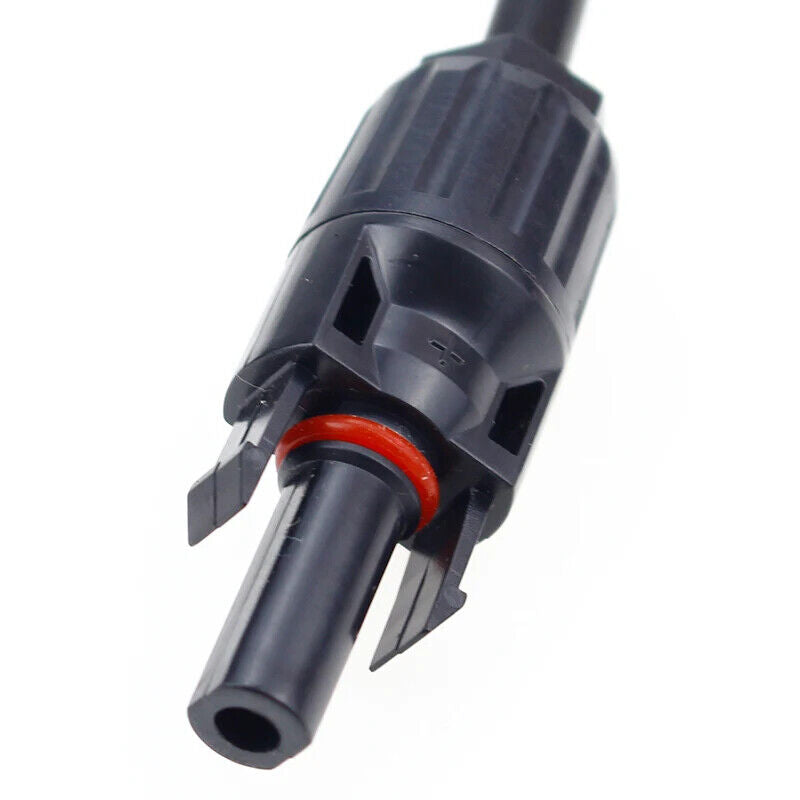

1x Male Y Type Solar Panel cable Connector

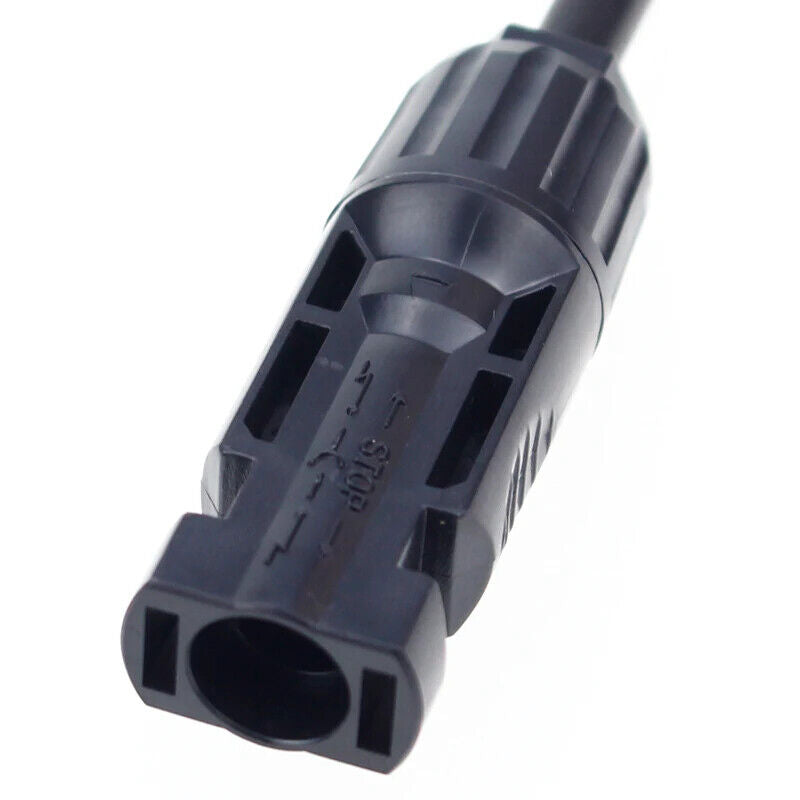

1x Female Y Type Solar Panel cable Connector
