Enhance your solar panel system with our premium IP67 Solar Panel Connectors, designed to ensure reliable and secure connections for optimal energy efficiency. Built with durability in mind, these connectors are perfect for various environmental conditions, making them ideal for both residential and commercial solar installations. Their superior electrical performance ensures that your solar panels operate at maximum potential, providing a dependable solution for your renewable energy needs.
Features:
High Durability: Constructed from robust PC insulation material, these connectors are built to withstand long-term use.
Superior Electrical Performance: Rated for a current of 30A and a voltage of 1000V DC, ensuring consistent and efficient power transmission.
Waterproof Protection: IP67 rating provides excellent protection against dust and water ingress, suitable for all-weather conditions.
Wide Temperature Range: Efficient operation in extreme temperatures, ranging from -40°C to +125°C.
Flame Retardant: Certified with flame class UL94-V0, offering enhanced fire safety.

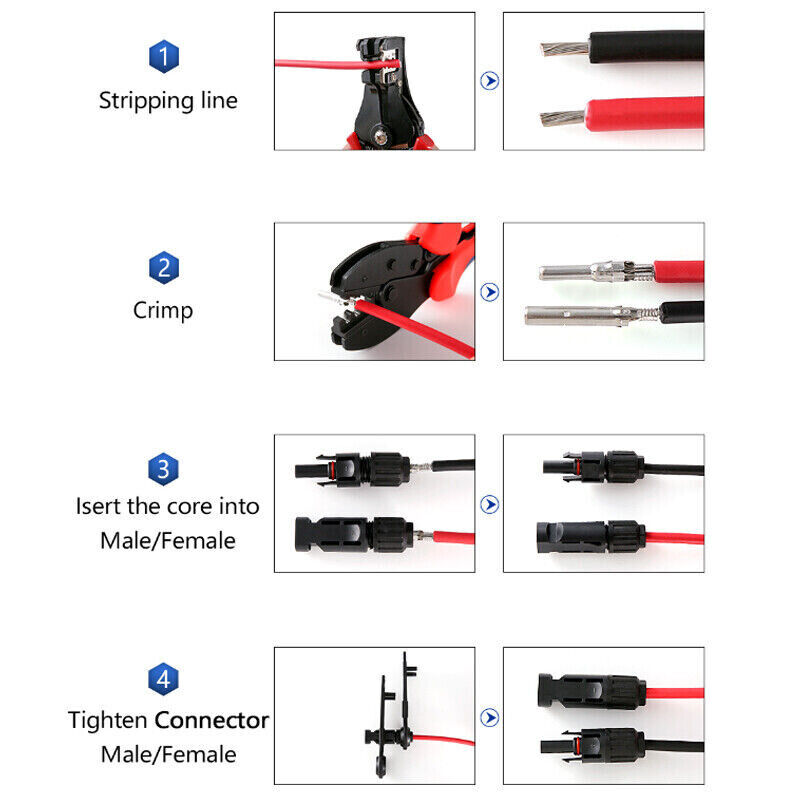

Easy Installation: Crimping connection system allows for quick and secure installation, ensuring hassle-free setup.
Versatile Compatibility: Suitable for cable cross-sections of 2.5mm²/4mm², making it adaptable to various system configurations.
Specifications:
Insulation Material: PC
Rated Current: 30A
Rated Voltage: 1000V DC
Test Voltage: DC6000V
Contact Resistance: 1mΩ
Waterproof Rating: IP67
Overvoltage Category: CATIII/2
Contact Material: Copper, Tin Plated
Insertion Force: Max. 50N
Withdrawal Force: Min. 50N
Operating Temperature Range: -40°C to +125°C
Flame Class: UL94-V0
Connection System: Crimping Connection
Cable Cross-Section Compatibility: 2.5mm²/4mm²
Package Includes:

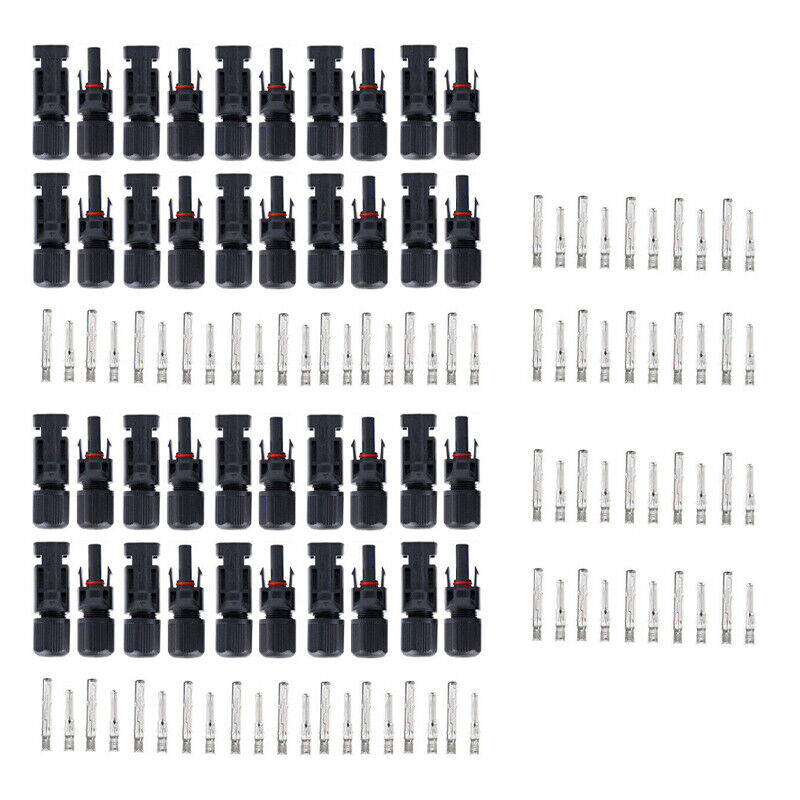

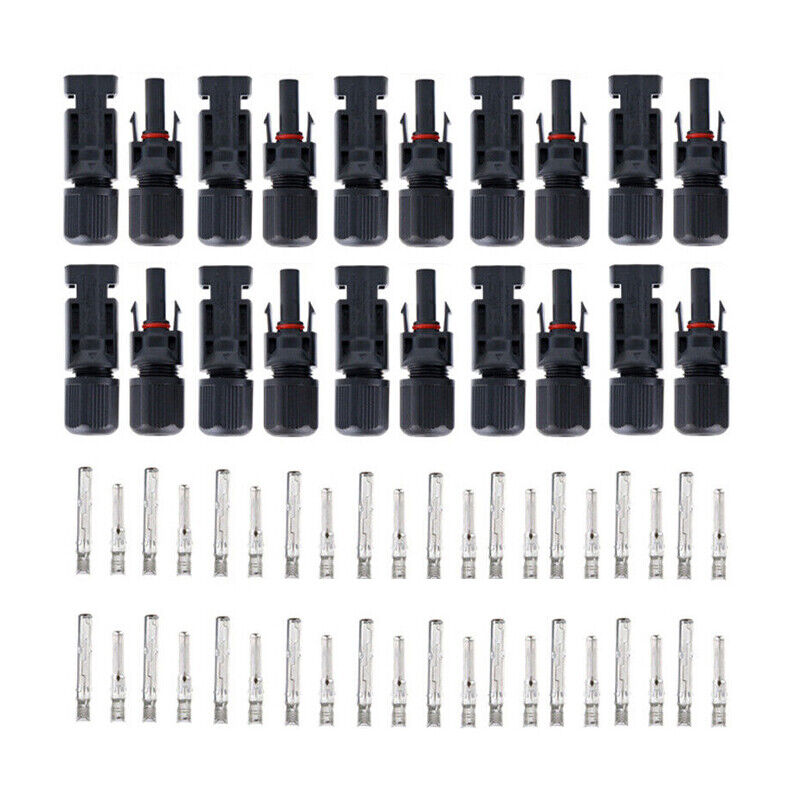

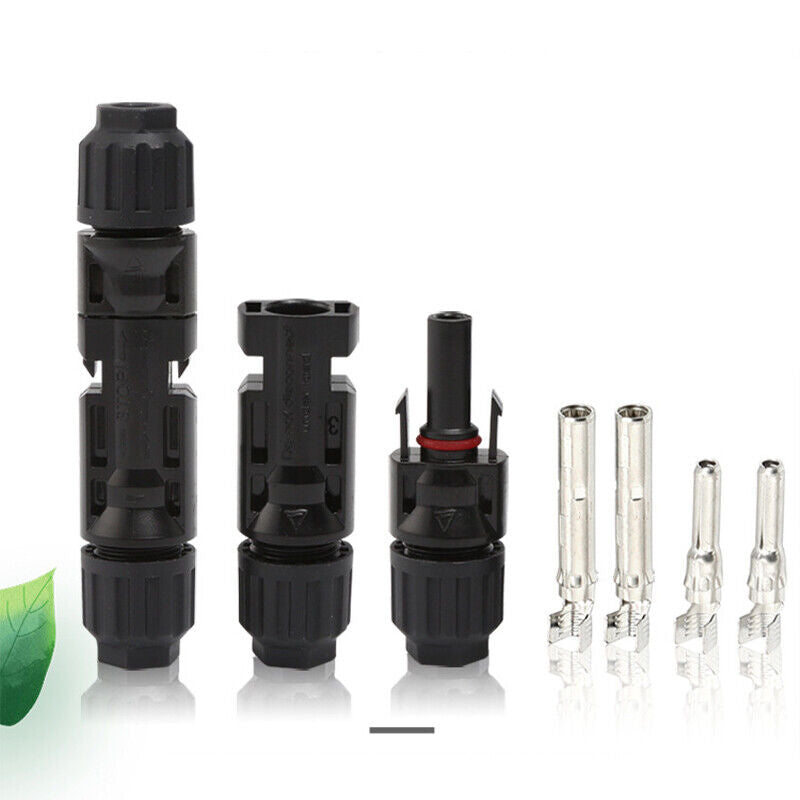

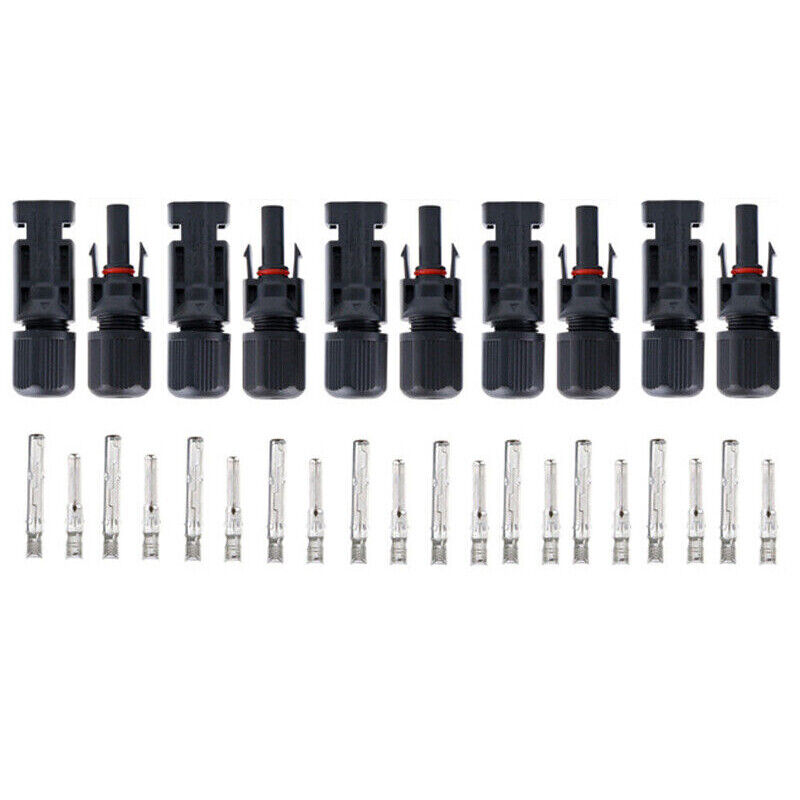

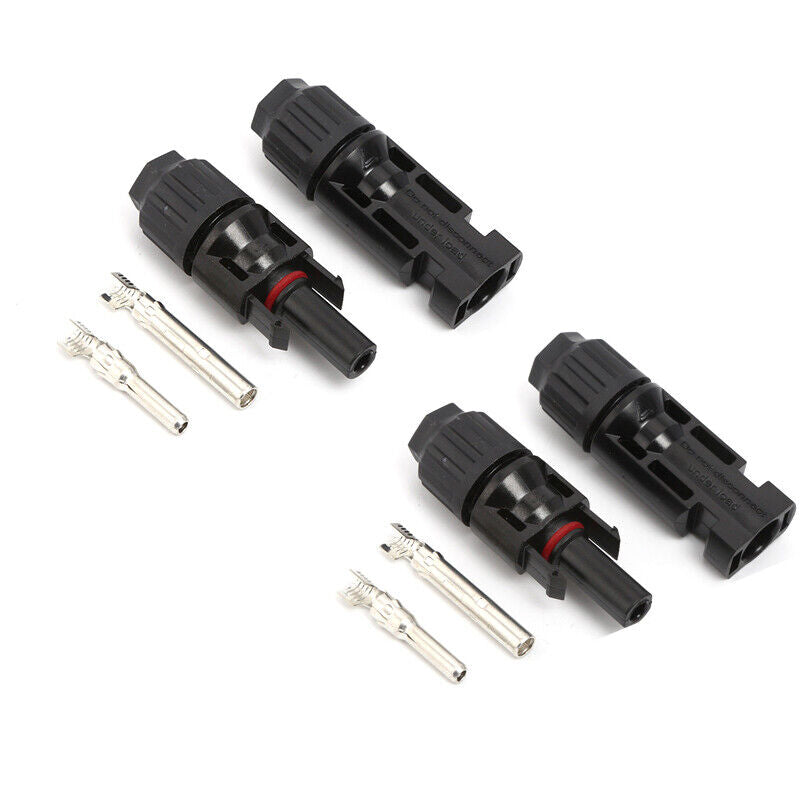

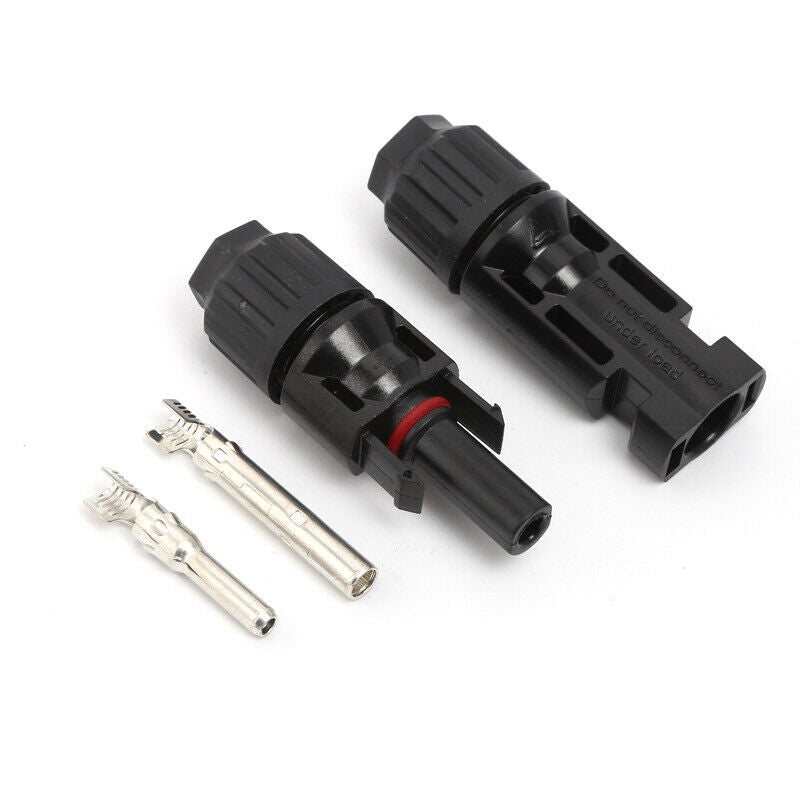

5/10/20 Pairs of Solar Panel Cable Connectors (depending on your selection)
Note:
Please note that slight colour variations may occur due to lighting and screen settings.
Measurements may slightly vary due to manual measurement.
Ensure all connections are tightly secured and properly crimped to prevent electrical issues.
Regularly inspect connectors for signs of wear or damage, especially in harsh environments.
Maximize the efficiency and safety of your solar energy system with these high-performance connectors, designed to deliver reliable power connections in any condition.
